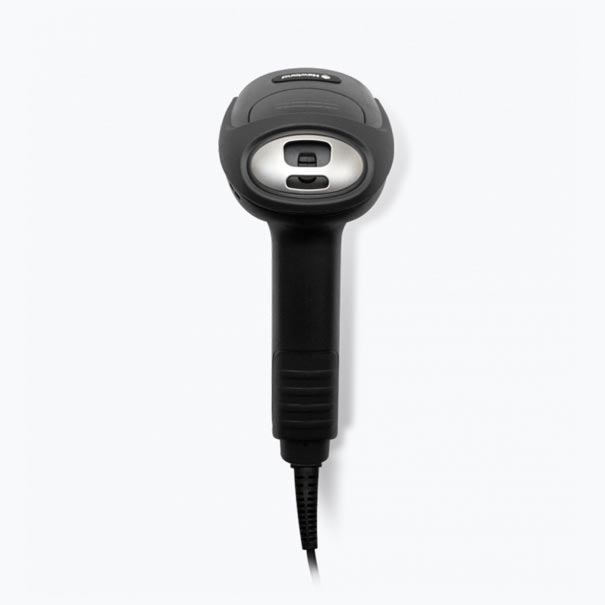

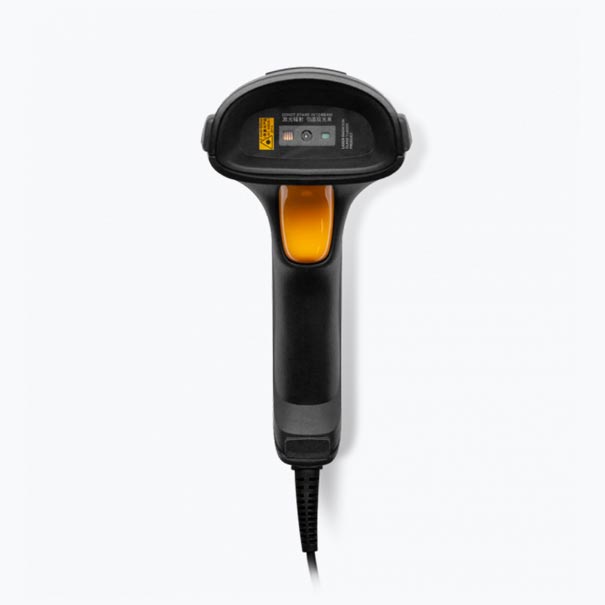

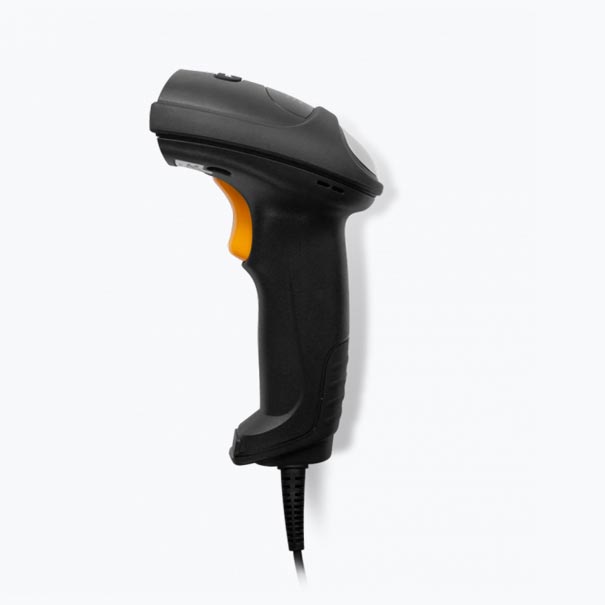

Giving it one of the quickest and most accurate scanning performances available, the HR52 Bonito Corded includes a megapixel barcode scanner that reads both 1D and 2D codes with ease. Barcodes that are creased, damaged or covered by cellophane are no problem for this scan engine.
Giving it one of the quickest and most accurate scanning performances available, the HR52 Bonito Corded includes a megapixel barcode scanner that reads both 1D and 2D codes with ease. Barcodes that are creased, damaged or covered by cellophane are no problem for this scan engine.
Healthcare
Logistics
Retail
Developed for scanning at the POS.
Equipped with a megapixel barcode scanner, the HR52 Bonito Corded provides you with some of the snappiest and most accurate scanning on the market. It reads virtually all 1D or 2D barcode in any condition, including DotCode on tobacco products.
Perfected for precise aiming.
Soft, white illumination combined with a clear cross laser aimer provide ideal conditions for point-and-shoot scanning. One press of the trigger is sure to capture the correct barcode, even if surrounded by other barcodes, by using Newland’s Acuscan aiming technology.
Adjusts to your environment.
No matter where the scanner needs to fit into your business, the HR52 Bonito Corded suits the setting. Its stand can be set for hands-free scanning, optimising work at your POS while keeping the device fully charged. In the stockroom or your warehouse, it can be mounted vertically or horizontally for easy access.
Durable design.
The built-in durability of the HR52 Bonito Corded makes the handheld scanner a reliable solution. Everyday drops to the floor or bumps on the counter are no match for its 1.8m drop resistance.
| Image Sensor | 1280x800 CMOS |
| Illumination | White LED |
| Aiming | 650nm laser diode |
| Depth of Field EAN 13 (13mil) | 35mm-280mm |
| Depth of Field Code 39 (5mil) | 70mm-210mm |
| Depth of Field PDF417 (6.67mil) | 50mm-160mm |
| Depth of Field Data Matrix (10mil) | 40mm-170mm |
| Depth of Field QR (15mil) | 20mm-230mm |
| Minimal Print Contrast | 20% |
| Scan Angle Roll | 360° |
| Scan Angle Pitch | ±55° |
| Scan Angle Skew | ±55° |
| Field of View Horizontal | 42° |
| Field of View Vertical | 28° |
| Motion Tolerance | 50cm/s |
| 1D | All major 1D symbologies, including EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 25, Standard 25, Matrix 25, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey. |
| 2D | All major 2D symbologies, including PDF417, QR Code, Data Matrix, Aztec, Maxicode. |
| Dimensions (mm) | 95.5(L)x77.5(W)x172.5(H)mm |
| Weight | 180g |
| Interfaces | RS-232, USB |
| Notifications | Beep, LED indicator, vibration |
| Input Voltage | 5VDC±5% |
| Current @ 5VDC Operating | 272mA (typical) |
| Current @ 5VDC Standby | 81mA |
| Power Consumption | 1308mW |
| Operating Temperature | -20℃ to 50℃ (-4°F to 122°F） |
| Storage Temperature | -40℃ to 70℃ (-40°F to 158°F) |
| Humidity | 5% to 95% (non-condensing) |
| Electro Static Discharge (ESD) | ±15 kV (air discharge), ±8 kV (direct discharge) |
| Drop | 1.8m |
| IP Rating | IP54 |
| Standard | USB Cable |
| Optional | RS232 Cable |
| Configuration Tools | EasySet |
| Hardware | FCC Part15 Class B, CE EMC Class B |
| Standard | 5 years |
