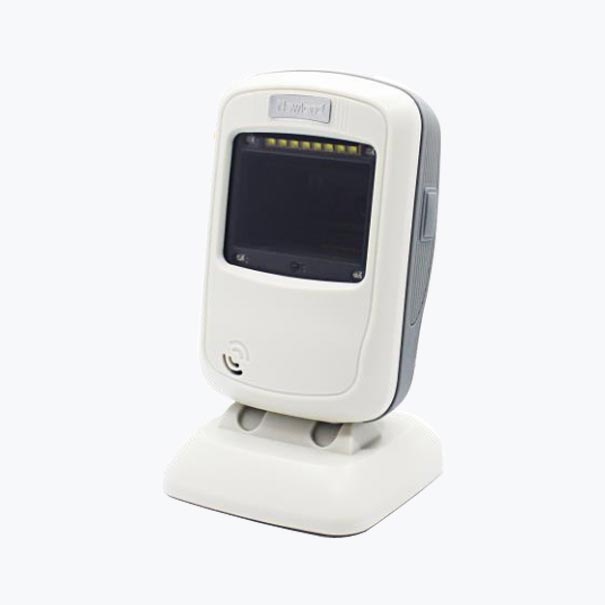

The scanner withstands multiple 1.2m drops to concrete (for six sides, one drop per side).
An IP52-rated seal protects the scanner against the ingress of dust, water and other contaminants
The IR sensor in the scanner enables speedy capture of barcodes presented to it, markedly increasing throughput and productivity.
The Switch at the top of the scanner allows users to swiftly toggle between the Normal mode and High Motion Tolerance mode.
Armed with Newland’s sixth-generation of UIMG® technology, this CPU-based scanner is capable of reading 1D as well as high-volume 2D barcodes on a screen covered with protective film.
Exceptional motion tolerance (2.5m/s) and large FOV (horizontal 51°, vertical 32°) enhance user experience.
Performance |
Image Sensor | 1280×800 CMOS | |
| Illumination | White LED | ||
| Symbologies | 2D 1D |
PDF417, Data Matrix, QR Code, Micro QR Code, Aztec, etc. EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 25, Standard 25, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc. |
|
| Resolution | ≥3mil | ||
| Typical Depth of Field | EAN-13 QR Code |
10-210mm (13mil) 10-180mm (15mil) |
|
| Scan Angle | Pitch: ±50°, Roll: 360°, Skew: ±45° | ||
| Min. Symbol Contrast | 25% | ||
| Motion Tolerance | 2.5m/s | ||
| Field of View | Horizontal 51°, Vertical 32° | ||
Physical |
Weight | 293g | |
| Notification | Beep, LED | ||
| Operating Voltage | 5VDC±5% | ||
| Current@5VDC | Operating | 219mA (typical) | |
| Interfaces | RS-232, USB | ||
| Rated Power Consumption | 1041mW (typical) | ||
Environmental |
Storage Temperature | -20°C to 60°C (-4°F to 140°F) | |
| Humidity | -40°C to 70°C (-40°F to 158°F) | ||
| ESD | 5%~95% (non-condensing) | ||
| Drop | ±14 KV (air discharge); ±8 KV (direct discharge) | ||
| Sealing | 1.2m drops to concrete (for six sides, one drop per side) | ||
| IP52 | |||
Certifications |
Certificates & Protection | FCC Part15 Class B, CE EMC Class B, RoHS |
